View Issue Details Jump to Notes ]
IDProjectCategoryView StatusLast Update
0002045NetSurfGTK-specificpublic2022-05-27 09:14
Reporterbeastie1
Assigned To
SeveritymajorReproducibilityalways
StatusconfirmedResolutionopen
PlatformnsgtkOSFreeBSD OS VersionFreeBSD 9.1-RELEASE
Product Version3.0
Target VersionFixed in Version
Summary0002045: nsgtk: regression in the Preferences window
Description1. NetSurf 3.0
2. FreeBSD 9.1-RELEASE
3. All-time reproducible

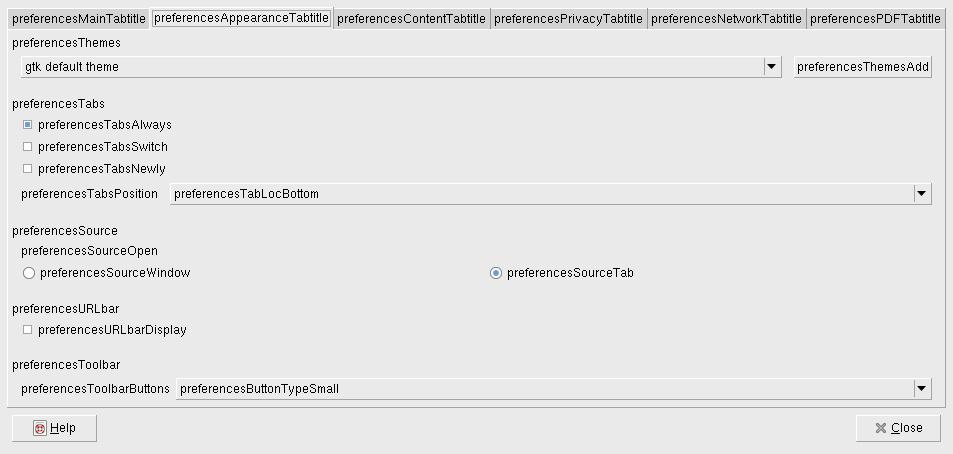

4. The labels in the Preferences window look messed up (see attached screenshot). In 2.9 everything looked perfectly normal.
Steps To ReproduceOpen dialog with menu entry
Edit > Preferences
TagsNo tags attached.
Fixed in CI build #
Reported in CI build #
URL of problem page
Attached Files

-Relationships
+Relationships

-Notes
Michael Drake

~0000005

Michael Drake (administrator)

From my mail to the developers list on Fri, 3 May 2013

We have had several BSD users recently asking similar questions. Seems
there are a couple of intermixed issues:

• Firstly the 3.0 release gtk install has a (fixed in git) bug where
the fallback language selection (C) was missing in the
resources. This resulted in no working translations at all which is
not the issue you describe.
• Secondly there seems to be an issue where a libintl.so is
incorrectly linked to NetSurf. This provides gettext symbols and
the library is probably included via GTK (pure speculation).

NetSurf itself provides its own gettext interface symbols (in
gtk/gettext.c). On Linux Glibc builds this suffices for symbol
resolution and the linker users our internal i10n routines to
provide translated text.

On BSD this does not appear to happen so GTK is using the wrong
routines and failing to show the translated text. Someone who
understands the linker and symbol resolution on BSD systems needs
to look at this as I am currently not in a position to solve this
myself.

Vincent
sabotage_linux

~0000484

sabotage_linux (reporter)

this is probably a duplicate of 0002150 which is already fixed in the latest release.
Vincent Sanders

~0000485

Vincent Sanders (administrator)

This is not a duplicate. The issue on the BSD platforms is that they end up linking gettext to the gtk library and do not use the implementation we provide within netsurf itself

The messages implementation within NetSurf itself is key:value and what is being shown here are the default translation keys.
Anthony J. Bentley

~0000486

Anthony J. Bentley (reporter)

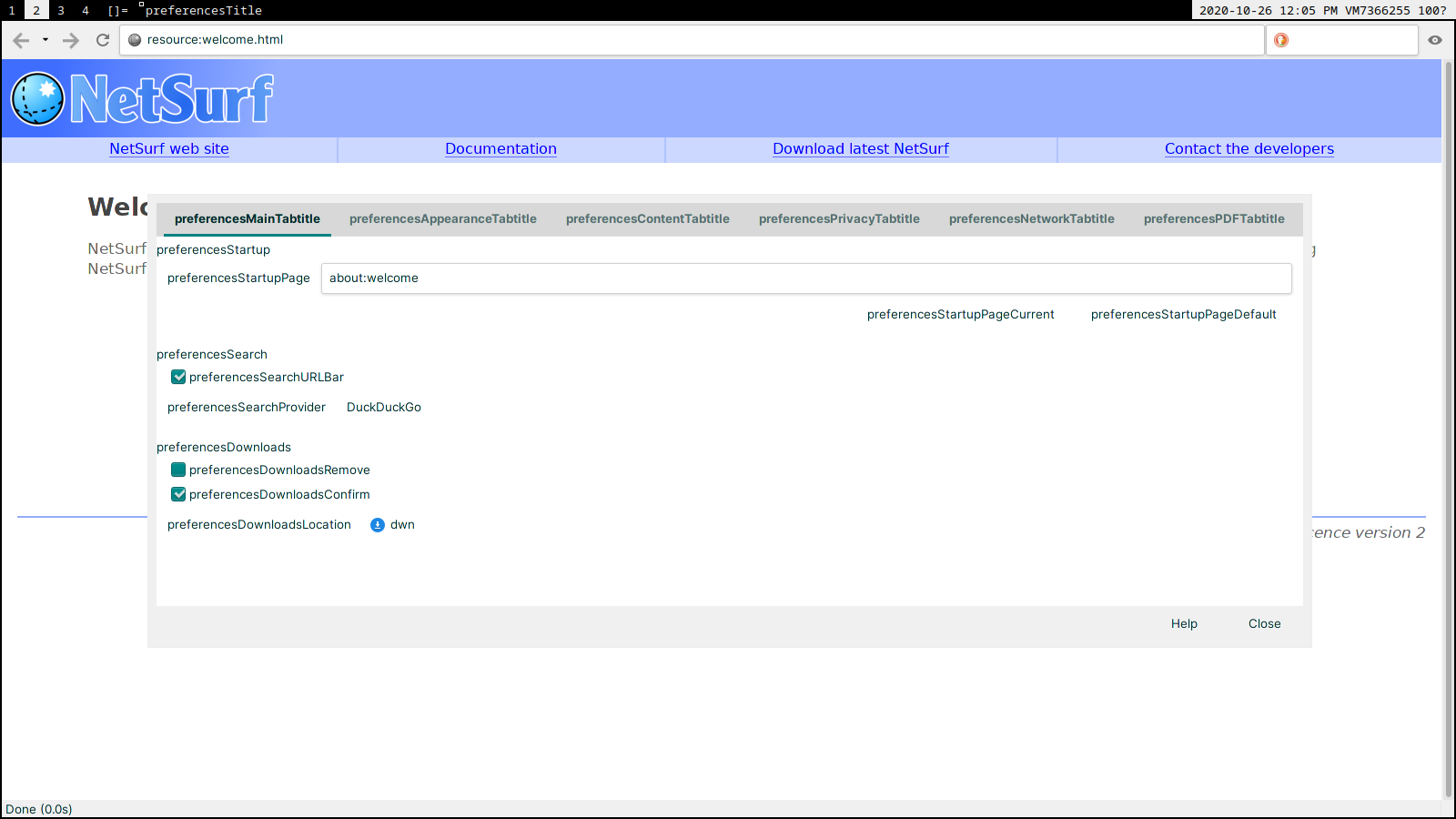

They are not the same issue. 0002045 still happens as of 3.2 and only affects the preferences window; 0002150 was visible in the main window (gtkFile, gtkEdit, etc), and could be worked around by setting LANG in the environment.
Anthony J. Bentley

~0000491

Anthony J. Bentley (reporter)

Can we use English words as keys in the GTK builder templates? That way systems affected by this issue would at least have a sane default.
Vincent Sanders

~0000494

Vincent Sanders (administrator)

$ for LIB in $(ldd ./nsgtk |awk '{ print $7 }' );do echo $LIB ; ldd $LIB; done

./nsgtk:
    Start End Type Open Ref GrpRef Name
    00000fc022000000 00000fc02271a000 exe 1 0 0 ./nsgtk
    00000fc226d29000 00000fc227161000 rlib 0 1 0 /usr/local/lib/libjpeg.so.66.0
    00000fc227b82000 00000fc22807f000 rlib 0 20 0 /usr/local/lib/libiconv.so.6.0
    00000fc2320e2000 00000fc2324f7000 rlib 0 15 0 /usr/lib/libz.so.5.0
    00000fc23073a000 00000fc230b6a000 rlib 0 7 0 /usr/local/lib/libpng.so.17.1
    00000fc227421000 00000fc22785b000 rlib 0 1 0 /usr/local/lib/librsvg-2.so.38.1
    00000fc229a94000 00000fc229ebc000 rlib 0 16 0 /usr/lib/libm.so.9.0
    00000fc22a3e3000 00000fc22a93f000 rlib 0 5 0 /usr/local/lib/libgio-2.0.so.3800.0
    00000fc23188b000 00000fc231cab000 rlib 0 4 0 /usr/local/lib/libgdk_pixbuf-2.0.so.3000.0
    00000fc225a7e000 00000fc225ecc000 rlib 0 10 0 /usr/local/lib/libgobject-2.0.so.3800.0
    00000fc23131f000 00000fc23181a000 rlib 0 15 0 /usr/local/lib/libglib-2.0.so.3800.0
    00000fc22b76c000 00000fc22bc66000 rlib 0 5 0 /usr/local/lib/libcairo.so.12.2
    00000fc22e5db000 00000fc22ea00000 rlib 0 8 0 /usr/lib/libexpat.so.11.0
    00000fc22370a000 00000fc223b68000 rlib 0 2 0 /usr/lib/libssl.so.20.0
    00000fc22c33d000 00000fc22c8f7000 rlib 0 2 0 /usr/lib/libcrypto.so.23.0
    00000fc22c8f7000 00000fc22cd53000 rlib 0 1 0 /usr/local/lib/libcurl.so.24.2
    00000fc228dd2000 00000fc2295f2000 rlib 0 1 0 /usr/local/lib/libgtk-x11-2.0.so.2400.0
    00000fc224b07000 00000fc224fba000 rlib 0 2 0 /usr/local/lib/libgdk-x11-2.0.so.2400.0
    00000fc2232f7000 00000fc22370a000 rlib 0 4 0 /usr/local/lib/libpangocairo-1.0.so.3600.0
    00000fc22e1d2000 00000fc22e5db000 rlib 0 8 0 /usr/X11R6/lib/libXrender.so.6.0
    00000fc22ff34000 00000fc230336000 rlib 0 3 0 /usr/X11R6/lib/libXinerama.so.6.0
    00000fc2263d1000 00000fc2267e0000 rlib 0 3 0 /usr/X11R6/lib/libXi.so.12.0
    00000fc225068000 00000fc225471000 rlib 0 3 0 /usr/X11R6/lib/libXrandr.so.7.0
    00000fc2267e0000 00000fc226bea000 rlib 0 3 0 /usr/X11R6/lib/libXcursor.so.5.0
    00000fc22aa41000 00000fc22ae44000 rlib 0 3 0 /usr/X11R6/lib/libXcomposite.so.4.0
    00000fc225f80000 00000fc226382000 rlib 0 3 0 /usr/X11R6/lib/libXdamage.so.4.0
    00000fc22d693000 00000fc22da98000 rlib 0 5 0 /usr/X11R6/lib/libXfixes.so.6.0
    00000fc222dc5000 00000fc2232f7000 rlib 0 15 0 /usr/X11R6/lib/libX11.so.16.0
    00000fc228355000 00000fc228766000 rlib 0 9 0 /usr/X11R6/lib/libXext.so.13.0
    00000fc230efd000 00000fc23131f000 rlib 0 2 0 /usr/local/lib/libatk-1.0.so.21009.1
    00000fc2289b9000 00000fc228dd2000 rlib 0 5 0 /usr/local/lib/libpangoft2-1.0.so.3600.0
    00000fc225633000 00000fc225a7e000 rlib 0 6 0 /usr/local/lib/libpango-1.0.so.3600.0
    00000fc22da98000 00000fc22df2a000 rlib 0 9 0 /usr/X11R6/lib/libfreetype.so.22.0
    00000fc231cab000 00000fc2320e2000 rlib 0 7 0 /usr/X11R6/lib/libfontconfig.so.9.0
    00000fc22ec43000 00000fc22f045000 rlib 0 7 0 /usr/local/lib/libgthread-2.0.so.3800.0
    00000fc229688000 00000fc229a8b000 rlib 0 9 0 /usr/local/lib/libgmodule-2.0.so.3800.0
    00000fc222759000 00000fc222b6b000 rlib 0 18 0 /usr/lib/libpthread.so.18.0
    00000fc22af8a000 00000fc22b473000 rlib 0 1 0 /usr/lib/libc.so.73.1
    00000fc232931000 00000fc232d98000 rlib 0 5 0 /usr/local/lib/libharfbuzz.so.4.2
    00000fc22cd53000 00000fc22d17c000 rlib 0 6 0 /usr/local/lib/libgraphite2.so.0.0
    00000fc22f447000 00000fc22f84e000 rlib 0 10 0 /usr/local/lib/libffi.so.0.0
    00000fc22f84e000 00000fc22fcfa000 rlib 0 5 0 /usr/X11R6/lib/libpixman-1.so.32.4
    00000fc22d17c000 00000fc22d57e000 rlib 0 5 0 /usr/X11R6/lib/libxcb-shm.so.1.0
    00000fc2335c0000 00000fc2339c9000 rlib 0 5 0 /usr/X11R6/lib/libxcb-render.so.1.0
    00000fc22f045000 00000fc22f447000 rlib 0 9 0 /usr/X11R6/lib/libpthread-stubs.so.2.0
    00000fc2331a2000 00000fc2335c0000 rlib 0 17 0 /usr/X11R6/lib/libxcb.so.3.0
    00000fc2324f7000 00000fc232931000 rlib 0 1 0 /usr/local/lib/libcroco-0.6.so.4.0
    00000fc22bc66000 00000fc22c0a6000 rlib 0 15 0 /usr/local/lib/libpcre.so.3.0
    00000fc232d98000 00000fc2331a2000 rlib 0 17 0 /usr/local/lib/libintl.so.6.0
    00000fc2339c9000 00000fc233f22000 rlib 0 2 0 /usr/local/lib/libxml2.so.15.1
    00000fc233f22000 00000fc234325000 rlib 0 2 0 /usr/X11R6/lib/libXau.so.10.0
    00000fc234325000 00000fc23472a000 rlib 0 2 0 /usr/X11R6/lib/libXdmcp.so.11.0
    00000fc23472a000 00000fc234b5d000 rlib 0 1 0 /usr/local/lib/libidn.so.17.0
    00000fc234b5d000 00000fc23506c000 rlib 0 2 0 /usr/lib/libstdc++.so.57.0
    00000fc224600000 00000fc224600000 rtld 0 1 0 /usr/libexec/ld.so
/usr/local/lib/libjpeg.so.66.0
    Start End Type Open Ref GrpRef Name
    000003636d9ad000 000003636dde5000 dlib 1 0 0 /usr/local/lib/libjpeg.so.66.0
/usr/local/lib/libiconv.so.6.0
    Start End Type Open Ref GrpRef Name
    000017c0f0538000 000017c0f0a35000 dlib 1 0 0 /usr/local/lib/libiconv.so.6.0
/usr/lib/libz.so.5.0
    Start End Type Open Ref GrpRef Name
    00000b046ce5a000 00000b046d26f000 dlib 1 0 0 /usr/lib/libz.so.5.0
/usr/local/lib/libpng.so.17.1
    Start End Type Open Ref GrpRef Name
    0000149ec94b3000 0000149ec98e3000 dlib 1 0 0 /usr/local/lib/libpng16.so.17.1
    0000149ecb47d000 0000149ecb892000 rlib 0 1 0 /usr/lib/libz.so.5.0
    0000149ece671000 0000149ecea99000 rlib 0 1 0 /usr/lib/libm.so.9.0
/usr/local/lib/librsvg-2.so.38.1
    Start End Type Open Ref GrpRef Name
    00000ea04e718000 00000ea04eb52000 dlib 1 0 0 /usr/local/lib/librsvg-2.so.38.1
    00000ea051da2000 00000ea0521c2000 rlib 0 1 0 /usr/local/lib/libgdk_pixbuf-2.0.so.3000.0
    00000ea0441c0000 00000ea04471c000 rlib 0 2 0 /usr/local/lib/libgio-2.0.so.3800.0
    00000ea048a07000 00000ea048e1a000 rlib 0 1 0 /usr/local/lib/libpangocairo-1.0.so.3600.0
    00000ea04b857000 00000ea04bc70000 rlib 0 2 0 /usr/local/lib/libpangoft2-1.0.so.3600.0
    00000ea0521c2000 00000ea052629000 rlib 0 3 0 /usr/local/lib/libharfbuzz.so.4.2
    00000ea04724d000 00000ea047676000 rlib 0 4 0 /usr/local/lib/libgraphite2.so.0.0
    00000ea045eae000 00000ea0462f9000 rlib 0 3 0 /usr/local/lib/libpango-1.0.so.3600.0
    00000ea043bd2000 00000ea043fd5000 rlib 0 6 0 /usr/local/lib/libgmodule-2.0.so.3800.0
    00000ea04f199000 00000ea04f59b000 rlib 0 4 0 /usr/local/lib/libgthread-2.0.so.3800.0
    00000ea04fe20000 00000ea05026e000 rlib 0 6 0 /usr/local/lib/libgobject-2.0.so.3800.0
    00000ea05112f000 00000ea051536000 rlib 0 7 0 /usr/local/lib/libffi.so.0.0
    00000ea04bc70000 00000ea04c16a000 rlib 0 2 0 /usr/local/lib/libcairo.so.12.2
    00000ea04c16a000 00000ea04c57c000 rlib 0 14 0 /usr/lib/libpthread.so.18.0
    00000ea049f50000 00000ea04a3fc000 rlib 0 3 0 /usr/X11R6/lib/libpixman-1.so.32.4
    00000ea04ed19000 00000ea04f150000 rlib 0 4 0 /usr/X11R6/lib/libfontconfig.so.9.0
    00000ea04f979000 00000ea04fd7b000 rlib 0 3 0 /usr/X11R6/lib/libxcb-shm.so.1.0
    00000ea050d26000 00000ea05112f000 rlib 0 3 0 /usr/X11R6/lib/libxcb-render.so.1.0
    00000ea045aa5000 00000ea045eae000 rlib 0 3 0 /usr/X11R6/lib/libXrender.so.6.0
    00000ea051991000 00000ea051da2000 rlib 0 3 0 /usr/X11R6/lib/libXext.so.13.0
    00000ea04b038000 00000ea04b4ca000 rlib 0 6 0 /usr/X11R6/lib/libfreetype.so.22.0
    00000ea04a43f000 00000ea04a864000 rlib 0 5 0 /usr/lib/libexpat.so.11.0
    00000ea04c710000 00000ea04cb12000 rlib 0 7 0 /usr/X11R6/lib/libpthread-stubs.so.2.0
    00000ea048e41000 00000ea049373000 rlib 0 5 0 /usr/X11R6/lib/libX11.so.16.0
    00000ea04dafb000 00000ea04df19000 rlib 0 8 0 /usr/X11R6/lib/libxcb.so.3.0
    00000ea046512000 00000ea046942000 rlib 0 4 0 /usr/local/lib/libpng.so.17.1
    00000ea049373000 00000ea0497ad000 rlib 0 1 0 /usr/local/lib/libcroco-0.6.so.4.0
    00000ea05082b000 00000ea050d26000 rlib 0 11 0 /usr/local/lib/libglib-2.0.so.3800.0
    00000ea044f2f000 00000ea04536f000 rlib 0 12 0 /usr/local/lib/libpcre.so.3.0
    00000ea04abb5000 00000ea04afbf000 rlib 0 12 0 /usr/local/lib/libintl.so.6.0
    00000ea0502d2000 00000ea05082b000 rlib 0 2 0 /usr/local/lib/libxml2.so.15.1
    00000ea046e27000 00000ea04723c000 rlib 0 11 0 /usr/lib/libz.so.5.0
    00000ea04367e000 00000ea043b7b000 rlib 0 14 0 /usr/local/lib/libiconv.so.6.0
    00000ea0497ad000 00000ea049bd5000 rlib 0 13 0 /usr/lib/libm.so.9.0
    00000ea052629000 00000ea052b38000 rlib 0 2 0 /usr/lib/libstdc++.so.57.0
    00000ea04cdd6000 00000ea04d1d9000 rlib 0 2 0 /usr/X11R6/lib/libXau.so.10.0
    00000ea047685000 00000ea047a8a000 rlib 0 2 0 /usr/X11R6/lib/libXdmcp.so.11.0
/usr/lib/libm.so.9.0
    Start End Type Open Ref GrpRef Name
    00001312afcf2000 00001312b011a000 dlib 1 0 0 /usr/lib/libm.so.9.0
/usr/local/lib/libgio-2.0.so.3800.0
    Start End Type Open Ref GrpRef Name
    000000b2acf28000 000000b2ad484000 dlib 1 0 0 /usr/local/lib/libgio-2.0.so.3800.0
    000000b2af52f000 000000b2af97d000 rlib 0 1 0 /usr/local/lib/libgobject-2.0.so.3800.0
    000000b2b80c9000 000000b2b84d0000 rlib 0 2 0 /usr/local/lib/libffi.so.0.0
    000000b2b4c11000 000000b2b5014000 rlib 0 1 0 /usr/local/lib/libgmodule-2.0.so.3800.0
    000000b2ae994000 000000b2aee8f000 rlib 0 3 0 /usr/local/lib/libglib-2.0.so.3800.0
    000000b2b7bae000 000000b2b7fee000 rlib 0 4 0 /usr/local/lib/libpcre.so.3.0
    000000b2b0582000 000000b2b0997000 rlib 0 1 0 /usr/lib/libz.so.5.0
    000000b2a9f18000 000000b2aa322000 rlib 0 4 0 /usr/local/lib/libintl.so.6.0
    000000b2b727a000 000000b2b7777000 rlib 0 5 0 /usr/local/lib/libiconv.so.6.0
    000000b2b0997000 000000b2b0da9000 rlib 0 5 0 /usr/lib/libpthread.so.18.0
/usr/local/lib/libgdk_pixbuf-2.0.so.3000.0
    Start End Type Open Ref GrpRef Name
    00001a858fae3000 00001a858ff03000 dlib 1 0 0 /usr/local/lib/libgdk_pixbuf-2.0.so.3000.0
    00001a8591eda000 00001a8592436000 rlib 0 1 0 /usr/local/lib/libgio-2.0.so.3800.0
    00001a858bdea000 00001a858c1ed000 rlib 0 2 0 /usr/local/lib/libgmodule-2.0.so.3800.0
    00001a85925e6000 00001a8592a34000 rlib 0 2 0 /usr/local/lib/libgobject-2.0.so.3800.0
    00001a8598e62000 00001a8599269000 rlib 0 3 0 /usr/local/lib/libffi.so.0.0
    00001a8595fdc000 00001a85964d7000 rlib 0 4 0 /usr/local/lib/libglib-2.0.so.3800.0
    00001a8596c57000 00001a8597097000 rlib 0 5 0 /usr/local/lib/libpcre.so.3.0
    00001a858c1ed000 00001a858c5f7000 rlib 0 5 0 /usr/local/lib/libintl.so.6.0
    00001a858ff03000 00001a8590400000 rlib 0 6 0 /usr/local/lib/libiconv.so.6.0
    00001a8595bac000 00001a8595fdc000 rlib 0 1 0 /usr/local/lib/libpng.so.17.1
    00001a859154a000 00001a859195f000 rlib 0 3 0 /usr/lib/libz.so.5.0
    00001a85951be000 00001a85955e6000 rlib 0 2 0 /usr/lib/libm.so.9.0
    00001a8598a50000 00001a8598e62000 rlib 0 6 0 /usr/lib/libpthread.so.18.0
/usr/local/lib/libgobject-2.0.so.3800.0
    Start End Type Open Ref GrpRef Name
    000001fa9d80d000 000001fa9dc5b000 dlib 1 0 0 /usr/local/lib/libgobject-2.0.so.3800.0
    000001fa8f839000 000001fa8fd34000 rlib 0 1 0 /usr/local/lib/libglib-2.0.so.3800.0
    000001fa964bd000 000001fa968fd000 rlib 0 2 0 /usr/local/lib/libpcre.so.3.0
    000001fa99fb8000 000001fa9a3bf000 rlib 0 1 0 /usr/local/lib/libffi.so.0.0
    000001fa908e8000 000001fa90cf2000 rlib 0 2 0 /usr/local/lib/libintl.so.6.0
    000001fa93811000 000001fa93d0e000 rlib 0 3 0 /usr/local/lib/libiconv.so.6.0
    000001fa9a8af000 000001fa9acc1000 rlib 0 3 0 /usr/lib/libpthread.so.18.0
/usr/local/lib/libglib-2.0.so.3800.0
    Start End Type Open Ref GrpRef Name
    000002592a95a000 000002592ae55000 dlib 1 0 0 /usr/local/lib/libglib-2.0.so.3800.0
    0000025932154000 0000025932594000 rlib 0 1 0 /usr/local/lib/libpcre.so.3.0
    0000025925cf6000 0000025926100000 rlib 0 1 0 /usr/local/lib/libintl.so.6.0
    0000025933728000 0000025933c25000 rlib 0 2 0 /usr/local/lib/libiconv.so.6.0
    0000025929445000 0000025929857000 rlib 0 2 0 /usr/lib/libpthread.so.18.0
/usr/local/lib/libcairo.so.12.2
    Start End Type Open Ref GrpRef Name
    00000624fda29000 00000624fdf23000 dlib 1 0 0 /usr/local/lib/libcairo.so.12.2
    00000624f9bb4000 00000624f9fc6000 rlib 0 2 0 /usr/lib/libpthread.so.18.0
    0000062504eda000 0000062505386000 rlib 0 1 0 /usr/X11R6/lib/libpixman-1.so.32.4
    00000624fe64a000 00000624fea81000 rlib 0 1 0 /usr/X11R6/lib/libfontconfig.so.9.0
    00000624fc780000 00000624fcba5000 rlib 0 2 0 /usr/lib/libexpat.so.11.0
    00000624faf94000 00000624fb426000 rlib 0 2 0 /usr/X11R6/lib/libfreetype.so.22.0
    00000624f8ed2000 00000624f9302000 rlib 0 1 0 /usr/local/lib/libpng.so.17.1
    0000062503e50000 0000062504252000 rlib 0 1 0 /usr/X11R6/lib/libxcb-shm.so.1.0
    00000625048ea000 0000062504cec000 rlib 0 4 0 /usr/X11R6/lib/libpthread-stubs.so.2.0
    00000624fbf56000 00000624fc359000 rlib 0 2 0 /usr/X11R6/lib/libXau.so.10.0
    0000062505386000 000006250578b000 rlib 0 2 0 /usr/X11R6/lib/libXdmcp.so.11.0
    00000625044e1000 00000625048ea000 rlib 0 1 0 /usr/X11R6/lib/libxcb-render.so.1.0
    00000624ff62f000 00000624ffa38000 rlib 0 1 0 /usr/X11R6/lib/libXrender.so.6.0
    0000062503442000 0000062503853000 rlib 0 1 0 /usr/X11R6/lib/libXext.so.13.0
    00000624fa7fb000 00000624fad2d000 rlib 0 3 0 /usr/X11R6/lib/libX11.so.16.0
    0000062503024000 0000062503442000 rlib 0 6 0 /usr/X11R6/lib/libxcb.so.3.0
    00000624fc359000 00000624fc76e000 rlib 0 3 0 /usr/lib/libz.so.5.0
    00000624fb426000 00000624fb84e000 rlib 0 3 0 /usr/lib/libm.so.9.0
/usr/lib/libexpat.so.11.0
    Start End Type Open Ref GrpRef Name
    0000006ad69d5000 0000006ad6dfa000 dlib 1 0 0 /usr/lib/libexpat.so.11.0
/usr/lib/libssl.so.20.0
    Start End Type Open Ref GrpRef Name
    00001364c231f000 00001364c277d000 dlib 1 0 0 /usr/lib/libssl.so.20.0
/usr/lib/libcrypto.so.23.0
    Start End Type Open Ref GrpRef Name
    000005ac954ee000 000005ac95aa8000 dlib 1 0 0 /usr/lib/libcrypto.so.23.0
/usr/local/lib/libcurl.so.24.2
    Start End Type Open Ref GrpRef Name
    00000cd9f68c1000 00000cd9f6d1d000 dlib 1 0 0 /usr/local/lib/libcurl.so.24.2
    00000cd9f5e37000 00000cd9f626a000 rlib 0 1 0 /usr/local/lib/libidn.so.17.0
    00000cd9fed11000 00000cd9ff11b000 rlib 0 2 0 /usr/local/lib/libintl.so.6.0
    00000cd9f58f4000 00000cd9f5df1000 rlib 0 3 0 /usr/local/lib/libiconv.so.6.0
    00000cd9f0b75000 00000cd9f0fd3000 rlib 0 1 0 /usr/lib/libssl.so.20.0
    00000cd9f8857000 00000cd9f8e11000 rlib 0 1 0 /usr/lib/libcrypto.so.23.0
    00000cd9f268b000 00000cd9f2aa0000 rlib 0 1 0 /usr/lib/libz.so.5.0
/usr/local/lib/libgtk-x11-2.0.so.2400.0
    Start End Type Open Ref GrpRef Name
    00001523e7b61000 00001523e8381000 dlib 1 0 0 /usr/local/lib/libgtk-x11-2.0.so.2400.0
    00001523edb3a000 00001523edfed000 rlib 0 1 0 /usr/local/lib/libgdk-x11-2.0.so.2400.0
    00001523ee11c000 00001523ee51e000 rlib 0 2 0 /usr/X11R6/lib/libXinerama.so.6.0
    00001523e8b2e000 00001523e8f3d000 rlib 0 2 0 /usr/X11R6/lib/libXi.so.12.0
    00001523ec5fe000 00001523eca07000 rlib 0 2 0 /usr/X11R6/lib/libXrandr.so.7.0
    00001523ee6e7000 00001523eeaf1000 rlib 0 2 0 /usr/X11R6/lib/libXcursor.so.5.0
    00001523ed36c000 00001523ed77f000 rlib 0 2 0 /usr/local/lib/libpangocairo-1.0.so.3600.0
    00001523e8729000 00001523e8b2c000 rlib 0 2 0 /usr/X11R6/lib/libXcomposite.so.4.0
    00001523ebe41000 00001523ec243000 rlib 0 2 0 /usr/X11R6/lib/libXdamage.so.4.0
    00001523f3aee000 00001523f3ef3000 rlib 0 4 0 /usr/X11R6/lib/libXfixes.so.6.0
    00001523f62e4000 00001523f6706000 rlib 0 1 0 /usr/local/lib/libatk-1.0.so.21009.1
    00001523ef62e000 00001523efb28000 rlib 0 3 0 /usr/local/lib/libcairo.so.12.2
    00001523ead71000 00001523eb183000 rlib 0 15 0 /usr/lib/libpthread.so.18.0
    00001523f08d0000 00001523f0d7c000 rlib 0 4 0 /usr/X11R6/lib/libpixman-1.so.32.4
    00001523eb183000 00001523eb585000 rlib 0 4 0 /usr/X11R6/lib/libxcb-shm.so.1.0
    00001523eca07000 00001523ece10000 rlib 0 4 0 /usr/X11R6/lib/libxcb-render.so.1.0
    00001523f5e1a000 00001523f6223000 rlib 0 6 0 /usr/X11R6/lib/libXrender.so.6.0
    00001523f1c38000 00001523f2049000 rlib 0 7 0 /usr/X11R6/lib/libXext.so.13.0
    00001523f24f8000 00001523f2a2a000 rlib 0 13 0 /usr/X11R6/lib/libX11.so.16.0
    00001523efeb3000 00001523f02d1000 rlib 0 16 0 /usr/X11R6/lib/libxcb.so.3.0
    00001523f6d51000 00001523f7171000 rlib 0 2 0 /usr/local/lib/libgdk_pixbuf-2.0.so.3000.0
    00001523f6706000 00001523f6b36000 rlib 0 5 0 /usr/local/lib/libpng.so.17.1
    00001523ece10000 00001523ed36c000 rlib 0 3 0 /usr/local/lib/libgio-2.0.so.3800.0
    00001523ea119000 00001523ea532000 rlib 0 3 0 /usr/local/lib/libpangoft2-1.0.so.3600.0
    00001523eeaf1000 00001523eef58000 rlib 0 4 0 /usr/local/lib/libharfbuzz.so.4.2
    00001523eb586000 00001523eb9af000 rlib 0 5 0 /usr/local/lib/libgraphite2.so.0.0
    00001523f2af3000 00001523f2f3e000 rlib 0 4 0 /usr/local/lib/libpango-1.0.so.3600.0
    00001523f04cd000 00001523f08d0000 rlib 0 7 0 /usr/local/lib/libgmodule-2.0.so.3800.0
    00001523f1836000 00001523f1c38000 rlib 0 5 0 /usr/local/lib/libgthread-2.0.so.3800.0
    00001523f3321000 00001523f376f000 rlib 0 8 0 /usr/local/lib/libgobject-2.0.so.3800.0
    00001523f5a13000 00001523f5e1a000 rlib 0 9 0 /usr/local/lib/libffi.so.0.0
    00001523e9cd9000 00001523ea119000 rlib 0 13 0 /usr/local/lib/libpcre.so.3.0
    00001523f4aae000 00001523f4fab000 rlib 0 14 0 /usr/local/lib/libiconv.so.6.0
    00001523ea7b7000 00001523eacb2000 rlib 0 12 0 /usr/local/lib/libglib-2.0.so.3800.0
    00001523f45e6000 00001523f49f0000 rlib 0 13 0 /usr/local/lib/libintl.so.6.0
    00001523e98a2000 00001523e9cd9000 rlib 0 5 0 /usr/X11R6/lib/libfontconfig.so.9.0
    00001523eb9af000 00001523ebe41000 rlib 0 7 0 /usr/X11R6/lib/libfreetype.so.22.0
    00001523f769e000 00001523f7ab3000 rlib 0 10 0 /usr/lib/libz.so.5.0
    00001523f53c6000 00001523f57eb000 rlib 0 6 0 /usr/lib/libexpat.so.11.0
    00001523f1434000 00001523f1836000 rlib 0 8 0 /usr/X11R6/lib/libpthread-stubs.so.2.0
    00001523f41be000 00001523f45e6000 rlib 0 12 0 /usr/lib/libm.so.9.0
    00001523f7ab3000 00001523f7eb6000 rlib 0 2 0 /usr/X11R6/lib/libXau.so.10.0
    00001523f7293000 00001523f7698000 rlib 0 2 0 /usr/X11R6/lib/libXdmcp.so.11.0
    00001523f7eb6000 00001523f83c5000 rlib 0 2 0 /usr/lib/libstdc++.so.57.0
/usr/local/lib/libgdk-x11-2.0.so.2400.0
    Start End Type Open Ref GrpRef Name
    00000eaf5032f000 00000eaf507e2000 dlib 1 0 0 /usr/local/lib/libgdk-x11-2.0.so.2400.0
    00000eaf54970000 00000eaf54d83000 rlib 0 1 0 /usr/local/lib/libpangocairo-1.0.so.3600.0
    00000eaf460c6000 00000eaf464df000 rlib 0 2 0 /usr/local/lib/libpangoft2-1.0.so.3600.0
    00000eaf52d29000 00000eaf53190000 rlib 0 3 0 /usr/local/lib/libharfbuzz.so.4.2
    00000eaf459ee000 00000eaf45e17000 rlib 0 4 0 /usr/local/lib/libgraphite2.so.0.0
    00000eaf4fd3a000 00000eaf50185000 rlib 0 3 0 /usr/local/lib/libpango-1.0.so.3600.0
    00000eaf55230000 00000eaf55632000 rlib 0 4 0 /usr/local/lib/libgthread-2.0.so.3800.0
    00000eaf5412d000 00000eaf5452f000 rlib 0 1 0 /usr/X11R6/lib/libXinerama.so.6.0
    00000eaf55632000 00000eaf55a41000 rlib 0 1 0 /usr/X11R6/lib/libXi.so.12.0
    00000eaf4c111000 00000eaf4c51a000 rlib 0 1 0 /usr/X11R6/lib/libXrandr.so.7.0
    00000eaf4abb1000 00000eaf4afbb000 rlib 0 1 0 /usr/X11R6/lib/libXcursor.so.5.0
    00000eaf47409000 00000eaf4780c000 rlib 0 1 0 /usr/X11R6/lib/libXcomposite.so.4.0
    00000eaf4b729000 00000eaf4bb2b000 rlib 0 1 0 /usr/X11R6/lib/libXdamage.so.4.0
    00000eaf4c51a000 00000eaf4c91f000 rlib 0 3 0 /usr/X11R6/lib/libXfixes.so.6.0
    00000eaf4f91a000 00000eaf4fd3a000 rlib 0 1 0 /usr/local/lib/libgdk_pixbuf-2.0.so.3000.0
    00000eaf4d5c5000 00000eaf4db21000 rlib 0 2 0 /usr/local/lib/libgio-2.0.so.3800.0
    00000eaf4cb4f000 00000eaf4cf52000 rlib 0 6 0 /usr/local/lib/libgmodule-2.0.so.3800.0
    00000eaf53a8f000 00000eaf53edd000 rlib 0 6 0 /usr/local/lib/libgobject-2.0.so.3800.0
    00000eaf50d14000 00000eaf5111b000 rlib 0 7 0 /usr/local/lib/libffi.so.0.0
    00000eaf52731000 00000eaf52c2c000 rlib 0 10 0 /usr/local/lib/libglib-2.0.so.3800.0
    00000eaf54530000 00000eaf54970000 rlib 0 11 0 /usr/local/lib/libpcre.so.3.0
    00000eaf4f025000 00000eaf4f42f000 rlib 0 11 0 /usr/local/lib/libintl.so.6.0
    00000eaf53190000 00000eaf5368d000 rlib 0 12 0 /usr/local/lib/libiconv.so.6.0
    00000eaf4e3c2000 00000eaf4e8bc000 rlib 0 2 0 /usr/local/lib/libcairo.so.12.2
    00000eaf4f508000 00000eaf4f91a000 rlib 0 13 0 /usr/lib/libpthread.so.18.0
    00000eaf54d84000 00000eaf55230000 rlib 0 3 0 /usr/X11R6/lib/libpixman-1.so.32.4
    00000eaf48b19000 00000eaf48f50000 rlib 0 4 0 /usr/X11R6/lib/libfontconfig.so.9.0
    00000eaf51b32000 00000eaf51f62000 rlib 0 4 0 /usr/local/lib/libpng.so.17.1
    00000eaf5368d000 00000eaf53a8f000 rlib 0 3 0 /usr/X11R6/lib/libxcb-shm.so.1.0
    00000eaf515ad000 00000eaf519b6000 rlib 0 3 0 /usr/X11R6/lib/libxcb-render.so.1.0
    00000eaf4cf52000 00000eaf4d35b000 rlib 0 5 0 /usr/X11R6/lib/libXrender.so.6.0
    00000eaf5111b000 00000eaf515ad000 rlib 0 6 0 /usr/X11R6/lib/libfreetype.so.22.0
    00000eaf4df9d000 00000eaf4e3c2000 rlib 0 5 0 /usr/lib/libexpat.so.11.0
    00000eaf46dbe000 00000eaf471c0000 rlib 0 7 0 /usr/X11R6/lib/libpthread-stubs.so.2.0
    00000eaf4a3d0000 00000eaf4a7e5000 rlib 0 9 0 /usr/lib/libz.so.5.0
    00000eaf51f62000 00000eaf52373000 rlib 0 6 0 /usr/X11R6/lib/libXext.so.13.0
    00000eaf507e2000 00000eaf50d14000 rlib 0 12 0 /usr/X11R6/lib/libX11.so.16.0
    00000eaf55a41000 00000eaf55e5f000 rlib 0 15 0 /usr/X11R6/lib/libxcb.so.3.0
    00000eaf4afbb000 00000eaf4b3e3000 rlib 0 11 0 /usr/lib/libm.so.9.0
    00000eaf55e5f000 00000eaf5636e000 rlib 0 2 0 /usr/lib/libstdc++.so.57.0
    00000eaf5636e000 00000eaf56771000 rlib 0 2 0 /usr/X11R6/lib/libXau.so.10.0
    00000eaf47873000 00000eaf47c78000 rlib 0 2 0 /usr/X11R6/lib/libXdmcp.so.11.0
/usr/local/lib/libpangocairo-1.0.so.3600.0
    Start End Type Open Ref GrpRef Name
    000019a113fcb000 000019a1143de000 dlib 1 0 0 /usr/local/lib/libpangocairo-1.0.so.3600.0
    000019a10905c000 000019a109556000 rlib 0 1 0 /usr/local/lib/libcairo.so.12.2
    000019a111753000 000019a111b65000 rlib 0 10 0 /usr/lib/libpthread.so.18.0
    000019a10f139000 000019a10f5e5000 rlib 0 2 0 /usr/X11R6/lib/libpixman-1.so.32.4
    000019a10a8f8000 000019a10ad28000 rlib 0 2 0 /usr/local/lib/libpng.so.17.1
    000019a11248d000 000019a11288f000 rlib 0 2 0 /usr/X11R6/lib/libxcb-shm.so.1.0
    000019a112d81000 000019a11318a000 rlib 0 2 0 /usr/X11R6/lib/libxcb-render.so.1.0
    000019a108651000 000019a108a5a000 rlib 0 2 0 /usr/X11R6/lib/libXrender.so.6.0
    000019a118000000 000019a118411000 rlib 0 2 0 /usr/X11R6/lib/libXext.so.13.0
    000019a115711000 000019a115c43000 rlib 0 4 0 /usr/X11R6/lib/libX11.so.16.0
    000019a11318a000 000019a1135a8000 rlib 0 7 0 /usr/X11R6/lib/libxcb.so.3.0
    000019a1143de000 000019a1147f7000 rlib 0 1 0 /usr/local/lib/libpangoft2-1.0.so.3600.0
    000019a11606b000 000019a1164b6000 rlib 0 2 0 /usr/local/lib/libpango-1.0.so.3600.0
    000019a1106b9000 000019a110b20000 rlib 0 2 0 /usr/local/lib/libharfbuzz.so.4.2
    000019a111e01000 000019a11224f000 rlib 0 3 0 /usr/local/lib/libgobject-2.0.so.3800.0
    000019a113b2b000 000019a113f2e000 rlib 0 3 0 /usr/local/lib/libgmodule-2.0.so.3800.0
    000019a1184aa000 000019a1188ac000 rlib 0 3 0 /usr/local/lib/libgthread-2.0.so.3800.0
    000019a115c43000 000019a11606b000 rlib 0 9 0 /usr/lib/libm.so.9.0
    000019a11288f000 000019a112c96000 rlib 0 4 0 /usr/local/lib/libffi.so.0.0
    000019a10f7a8000 000019a10fca3000 rlib 0 7 0 /usr/local/lib/libglib-2.0.so.3800.0
    000019a10ad29000 000019a10b152000 rlib 0 3 0 /usr/local/lib/libgraphite2.so.0.0
    000019a1136eb000 000019a113b2b000 rlib 0 8 0 /usr/local/lib/libpcre.so.3.0
    000019a10a05c000 000019a10a466000 rlib 0 8 0 /usr/local/lib/libintl.so.6.0
    000019a109556000 000019a109a53000 rlib 0 9 0 /usr/local/lib/libiconv.so.6.0
    000019a109a53000 000019a109e8a000 rlib 0 3 0 /usr/X11R6/lib/libfontconfig.so.9.0
    000019a10a466000 000019a10a8f8000 rlib 0 5 0 /usr/X11R6/lib/libfreetype.so.22.0
    000019a110ccf000 000019a1110e4000 rlib 0 6 0 /usr/lib/libz.so.5.0
    000019a1170a4000 000019a1174c9000 rlib 0 4 0 /usr/lib/libexpat.so.11.0
    000019a111351000 000019a111753000 rlib 0 6 0 /usr/X11R6/lib/libpthread-stubs.so.2.0
    000019a1167d8000 000019a116bdb000 rlib 0 2 0 /usr/X11R6/lib/libXau.so.10.0
    000019a11483c000 000019a114c41000 rlib 0 2 0 /usr/X11R6/lib/libXdmcp.so.11.0
    000019a11768c000 000019a117b9b000 rlib 0 2 0 /usr/lib/libstdc++.so.57.0
/usr/X11R6/lib/libXrender.so.6.0
    Start End Type Open Ref GrpRef Name
    00001b36605aa000 00001b36609b3000 dlib 1 0 0 /usr/X11R6/lib/libXrender.so.6.0
    00001b366144e000 00001b3661980000 rlib 0 1 0 /usr/X11R6/lib/libX11.so.16.0
    00001b36609b3000 00001b3660dd1000 rlib 0 2 0 /usr/X11R6/lib/libxcb.so.3.0
    00001b3668a77000 00001b3668e79000 rlib 0 1 0 /usr/X11R6/lib/libpthread-stubs.so.2.0
    00001b3666b8e000 00001b3666f91000 rlib 0 1 0 /usr/X11R6/lib/libXau.so.10.0
    00001b3668137000 00001b366853c000 rlib 0 1 0 /usr/X11R6/lib/libXdmcp.so.11.0
/usr/X11R6/lib/libXinerama.so.6.0
    Start End Type Open Ref GrpRef Name
    00000823ed10d000 00000823ed50f000 dlib 1 0 0 /usr/X11R6/lib/libXinerama.so.6.0
    00000823f0790000 00000823f0ba1000 rlib 0 1 0 /usr/X11R6/lib/libXext.so.13.0
    00000823f00b0000 00000823f05e2000 rlib 0 2 0 /usr/X11R6/lib/libX11.so.16.0
    00000823eaca6000 00000823eb0c4000 rlib 0 3 0 /usr/X11R6/lib/libxcb.so.3.0
    00000823f0ba1000 00000823f0fa3000 rlib 0 1 0 /usr/X11R6/lib/libpthread-stubs.so.2.0
    00000823e6aeb000 00000823e6eee000 rlib 0 1 0 /usr/X11R6/lib/libXau.so.10.0
    00000823ecb0d000 00000823ecf12000 rlib 0 1 0 /usr/X11R6/lib/libXdmcp.so.11.0
/usr/X11R6/lib/libXi.so.12.0
    Start End Type Open Ref GrpRef Name
    000009881ca8c000 000009881ce9b000 dlib 1 0 0 /usr/X11R6/lib/libXi.so.12.0
    00000988202e7000 00000988206f8000 rlib 0 1 0 /usr/X11R6/lib/libXext.so.13.0
    0000098813c2a000 000009881415c000 rlib 0 2 0 /usr/X11R6/lib/libX11.so.16.0
    0000098816009000 0000098816427000 rlib 0 3 0 /usr/X11R6/lib/libxcb.so.3.0
    000009881415c000 000009881455e000 rlib 0 1 0 /usr/X11R6/lib/libpthread-stubs.so.2.0
    0000098816500000 0000098816903000 rlib 0 1 0 /usr/X11R6/lib/libXau.so.10.0
    000009881b0e1000 000009881b4e6000 rlib 0 1 0 /usr/X11R6/lib/libXdmcp.so.11.0
/usr/X11R6/lib/libXrandr.so.7.0
    Start End Type Open Ref GrpRef Name
    000008b80082e000 000008b800c37000 dlib 1 0 0 /usr/X11R6/lib/libXrandr.so.7.0
    000008b7fe8fa000 000008b7fed0b000 rlib 0 1 0 /usr/X11R6/lib/libXext.so.13.0
    000008b7fdb0e000 000008b7fdf17000 rlib 0 1 0 /usr/X11R6/lib/libXrender.so.6.0
    000008b806839000 000008b806d6b000 rlib 0 3 0 /usr/X11R6/lib/libX11.so.16.0
    000008b803a09000 000008b803e27000 rlib 0 4 0 /usr/X11R6/lib/libxcb.so.3.0
    000008b806e0d000 000008b80720f000 rlib 0 1 0 /usr/X11R6/lib/libpthread-stubs.so.2.0
    000008b800fac000 000008b8013af000 rlib 0 1 0 /usr/X11R6/lib/libXau.so.10.0
    000008b802896000 000008b802c9b000 rlib 0 1 0 /usr/X11R6/lib/libXdmcp.so.11.0
/usr/X11R6/lib/libXcursor.so.5.0
    Start End Type Open Ref GrpRef Name
    000000411d393000 000000411d79d000 dlib 1 0 0 /usr/X11R6/lib/libXcursor.so.5.0
    0000004119f07000 000000411a310000 rlib 0 1 0 /usr/X11R6/lib/libXrender.so.6.0
    0000004128843000 0000004128c48000 rlib 0 1 0 /usr/X11R6/lib/libXfixes.so.6.0
    000000411e561000 000000411ea93000 rlib 0 3 0 /usr/X11R6/lib/libX11.so.16.0
    0000004125c74000 0000004126092000 rlib 0 4 0 /usr/X11R6/lib/libxcb.so.3.0
    000000411dd11000 000000411e113000 rlib 0 1 0 /usr/X11R6/lib/libpthread-stubs.so.2.0
    0000004125850000 0000004125c53000 rlib 0 1 0 /usr/X11R6/lib/libXau.so.10.0
    000000411ff65000 000000412036a000 rlib 0 1 0 /usr/X11R6/lib/libXdmcp.so.11.0
/usr/X11R6/lib/libXcomposite.so.4.0
    Start End Type Open Ref GrpRef Name
    00001d22ae3e7000 00001d22ae7ea000 dlib 1 0 0 /usr/X11R6/lib/libXcomposite.so.4.0
    00001d22a85d3000 00001d22a8b05000 rlib 0 1 0 /usr/X11R6/lib/libX11.so.16.0
    00001d22ac5e8000 00001d22aca06000 rlib 0 2 0 /usr/X11R6/lib/libxcb.so.3.0
    00001d22a1863000 00001d22a1c65000 rlib 0 1 0 /usr/X11R6/lib/libpthread-stubs.so.2.0
    00001d22ab39c000 00001d22ab79f000 rlib 0 1 0 /usr/X11R6/lib/libXau.so.10.0
    00001d22a9321000 00001d22a9726000 rlib 0 1 0 /usr/X11R6/lib/libXdmcp.so.11.0
/usr/X11R6/lib/libXdamage.so.4.0
    Start End Type Open Ref GrpRef Name
    000009feddaca000 000009feddecc000 dlib 1 0 0 /usr/X11R6/lib/libXdamage.so.4.0
    000009fed64da000 000009fed68df000 rlib 0 1 0 /usr/X11R6/lib/libXfixes.so.6.0
    000009fee3b3f000 000009fee4071000 rlib 0 2 0 /usr/X11R6/lib/libX11.so.16.0
    000009fed7a07000 000009fed7e25000 rlib 0 3 0 /usr/X11R6/lib/libxcb.so.3.0
    000009fed7366000 000009fed7768000 rlib 0 1 0 /usr/X11R6/lib/libpthread-stubs.so.2.0
    000009fee4071000 000009fee4474000 rlib 0 1 0 /usr/X11R6/lib/libXau.so.10.0
    000009fed7e25000 000009fed822a000 rlib 0 1 0 /usr/X11R6/lib/libXdmcp.so.11.0
/usr/X11R6/lib/libXfixes.so.6.0
    Start End Type Open Ref GrpRef Name
    000017d296111000 000017d296516000 dlib 1 0 0 /usr/X11R6/lib/libXfixes.so.6.0
    000017d2922c0000 000017d2927f2000 rlib 0 1 0 /usr/X11R6/lib/libX11.so.16.0
    000017d29c3ea000 000017d29c808000 rlib 0 2 0 /usr/X11R6/lib/libxcb.so.3.0
    000017d29309c000 000017d29349e000 rlib 0 1 0 /usr/X11R6/lib/libpthread-stubs.so.2.0
    000017d294f16000 000017d295319000 rlib 0 1 0 /usr/X11R6/lib/libXau.so.10.0
    000017d29bfac000 000017d29c3b1000 rlib 0 1 0 /usr/X11R6/lib/libXdmcp.so.11.0
/usr/X11R6/lib/libX11.so.16.0
    Start End Type Open Ref GrpRef Name
    00000c3306642000 00000c3306b74000 dlib 1 0 0 /usr/X11R6/lib/libX11.so.16.0
    00000c3300045000 00000c3300463000 rlib 0 1 0 /usr/X11R6/lib/libxcb.so.3.0
    00000c32fcef2000 00000c32fd2f4000 rlib 0 1 0 /usr/X11R6/lib/libpthread-stubs.so.2.0
    00000c330365a000 00000c3303a5d000 rlib 0 1 0 /usr/X11R6/lib/libXau.so.10.0
    00000c330446c000 00000c3304871000 rlib 0 1 0 /usr/X11R6/lib/libXdmcp.so.11.0
/usr/X11R6/lib/libXext.so.13.0
    Start End Type Open Ref GrpRef Name
    000004bc5e3b6000 000004bc5e7c7000 dlib 1 0 0 /usr/X11R6/lib/libXext.so.13.0
    000004bc56442000 000004bc56974000 rlib 0 1 0 /usr/X11R6/lib/libX11.so.16.0
    000004bc636f1000 000004bc63b0f000 rlib 0 2 0 /usr/X11R6/lib/libxcb.so.3.0
    000004bc5dc86000 000004bc5e088000 rlib 0 1 0 /usr/X11R6/lib/libpthread-stubs.so.2.0
    000004bc5eacc000 000004bc5eecf000 rlib 0 1 0 /usr/X11R6/lib/libXau.so.10.0
    000004bc6479c000 000004bc64ba1000 rlib 0 1 0 /usr/X11R6/lib/libXdmcp.so.11.0
/usr/local/lib/libatk-1.0.so.21009.1
    Start End Type Open Ref GrpRef Name
    000008522b0b8000 000008522b4da000 dlib 1 0 0 /usr/local/lib/libatk-1.0.so.21009.1
    000008522452c000 000008522497a000 rlib 0 1 0 /usr/local/lib/libgobject-2.0.so.3800.0
    000008522ba99000 000008522bea0000 rlib 0 2 0 /usr/local/lib/libffi.so.0.0
    0000085230da2000 000008523129d000 rlib 0 2 0 /usr/local/lib/libglib-2.0.so.3800.0
    0000085224e6a000 00000852252aa000 rlib 0 3 0 /usr/local/lib/libpcre.so.3.0
    0000085229a83000 0000085229f80000 rlib 0 4 0 /usr/local/lib/libiconv.so.6.0
    0000085230998000 0000085230da2000 rlib 0 3 0 /usr/local/lib/libintl.so.6.0
    0000085231f92000 00000852323a4000 rlib 0 4 0 /usr/lib/libpthread.so.18.0
/usr/local/lib/libpangoft2-1.0.so.3600.0
    Start End Type Open Ref GrpRef Name
    00001bfd65058000 00001bfd65471000 dlib 1 0 0 /usr/local/lib/libpangoft2-1.0.so.3600.0
    00001bfd64580000 00001bfd649cb000 rlib 0 1 0 /usr/local/lib/libpango-1.0.so.3600.0
    00001bfd63acd000 00001bfd63f1b000 rlib 0 2 0 /usr/local/lib/libgobject-2.0.so.3800.0
    00001bfd65873000 00001bfd65c7a000 rlib 0 3 0 /usr/local/lib/libffi.so.0.0
    00001bfd6a045000 00001bfd6a448000 rlib 0 2 0 /usr/local/lib/libgmodule-2.0.so.3800.0
    00001bfd65471000 00001bfd65873000 rlib 0 2 0 /usr/local/lib/libgthread-2.0.so.3800.0
    00001bfd61afa000 00001bfd61f61000 rlib 0 1 0 /usr/local/lib/libharfbuzz.so.4.2
    00001bfd6bb0a000 00001bfd6c005000 rlib 0 6 0 /usr/local/lib/libglib-2.0.so.3800.0
    00001bfd68311000 00001bfd6873a000 rlib 0 2 0 /usr/local/lib/libgraphite2.so.0.0
    00001bfd6c005000 00001bfd6c445000 rlib 0 7 0 /usr/local/lib/libpcre.so.3.0
    00001bfd6e743000 00001bfd6eb4d000 rlib 0 7 0 /usr/local/lib/libintl.so.6.0
    00001bfd5f8dd000 00001bfd5fdda000 rlib 0 8 0 /usr/local/lib/libiconv.so.6.0
    00001bfd67135000 00001bfd6756c000 rlib 0 1 0 /usr/X11R6/lib/libfontconfig.so.9.0
    00001bfd611f3000 00001bfd61685000 rlib 0 3 0 /usr/X11R6/lib/libfreetype.so.22.0
    00001bfd6203d000 00001bfd62452000 rlib 0 3 0 /usr/lib/libz.so.5.0
    00001bfd664d4000 00001bfd668f9000 rlib 0 2 0 /usr/lib/libexpat.so.11.0
    00001bfd6313e000 00001bfd63540000 rlib 0 2 0 /usr/X11R6/lib/libpthread-stubs.so.2.0
    00001bfd6873a000 00001bfd68b62000 rlib 0 5 0 /usr/lib/libm.so.9.0
    00001bfd65cd9000 00001bfd660eb000 rlib 0 8 0 /usr/lib/libpthread.so.18.0
    00001bfd6a6ec000 00001bfd6abfb000 rlib 0 2 0 /usr/lib/libstdc++.so.57.0
/usr/local/lib/libpango-1.0.so.3600.0
    Start End Type Open Ref GrpRef Name
    00001a6665751000 00001a6665b9c000 dlib 1 0 0 /usr/local/lib/libpango-1.0.so.3600.0
    00001a6660b48000 00001a6660f96000 rlib 0 1 0 /usr/local/lib/libgobject-2.0.so.3800.0
    00001a666aac6000 00001a666aecd000 rlib 0 2 0 /usr/local/lib/libffi.so.0.0
    00001a666e4a3000 00001a666e8a6000 rlib 0 1 0 /usr/local/lib/libgmodule-2.0.so.3800.0
    00001a6665de9000 00001a66661eb000 rlib 0 1 0 /usr/local/lib/libgthread-2.0.so.3800.0
    00001a666866d000 00001a6668b68000 rlib 0 4 0 /usr/local/lib/libglib-2.0.so.3800.0
    00001a666406b000 00001a66644ab000 rlib 0 5 0 /usr/local/lib/libpcre.so.3.0
    00001a6670319000 00001a6670723000 rlib 0 5 0 /usr/local/lib/libintl.so.6.0
    00001a66661eb000 00001a66666e8000 rlib 0 6 0 /usr/local/lib/libiconv.so.6.0
    00001a6668245000 00001a666866d000 rlib 0 1 0 /usr/lib/libm.so.9.0
    00001a666eef7000 00001a666f309000 rlib 0 6 0 /usr/lib/libpthread.so.18.0
/usr/X11R6/lib/libfreetype.so.22.0
    Start End Type Open Ref GrpRef Name
    00001bd14c563000 00001bd14c9f5000 dlib 1 0 0 /usr/X11R6/lib/libfreetype.so.22.0
/usr/X11R6/lib/libfontconfig.so.9.0
    Start End Type Open Ref GrpRef Name
    00001bd34f2fb000 00001bd34f732000 dlib 1 0 0 /usr/X11R6/lib/libfontconfig.so.9.0
    00001bd3531b1000 00001bd353643000 rlib 0 1 0 /usr/X11R6/lib/libfreetype.so.22.0
    00001bd34fe00000 00001bd350225000 rlib 0 1 0 /usr/lib/libexpat.so.11.0
    00001bd3569a6000 00001bd356dbb000 rlib 0 1 0 /usr/lib/libz.so.5.0
    00001bd348d90000 00001bd349192000 rlib 0 1 0 /usr/X11R6/lib/libpthread-stubs.so.2.0
/usr/local/lib/libgthread-2.0.so.3800.0
    Start End Type Open Ref GrpRef Name
    00001cd444275000 00001cd444677000 dlib 1 0 0 /usr/local/lib/libgthread-2.0.so.3800.0
    00001cd448f55000 00001cd449450000 rlib 0 1 0 /usr/local/lib/libglib-2.0.so.3800.0
    00001cd444677000 00001cd444ab7000 rlib 0 2 0 /usr/local/lib/libpcre.so.3.0
    00001cd43f0b9000 00001cd43f4c3000 rlib 0 2 0 /usr/local/lib/libintl.so.6.0
    00001cd448511000 00001cd448a0e000 rlib 0 3 0 /usr/local/lib/libiconv.so.6.0
    00001cd44047b000 00001cd44088d000 rlib 0 3 0 /usr/lib/libpthread.so.18.0
/usr/local/lib/libgmodule-2.0.so.3800.0
    Start End Type Open Ref GrpRef Name
    00000933abd8f000 00000933ac192000 dlib 1 0 0 /usr/local/lib/libgmodule-2.0.so.3800.0
    00000933b3e6c000 00000933b4367000 rlib 0 1 0 /usr/local/lib/libglib-2.0.so.3800.0
    00000933b8a3b000 00000933b8e7b000 rlib 0 2 0 /usr/local/lib/libpcre.so.3.0
    00000933b90ba000 00000933b94c4000 rlib 0 2 0 /usr/local/lib/libintl.so.6.0
    00000933b7941000 00000933b7e3e000 rlib 0 3 0 /usr/local/lib/libiconv.so.6.0
    00000933ae33c000 00000933ae74e000 rlib 0 3 0 /usr/lib/libpthread.so.18.0
/usr/lib/libpthread.so.18.0
    Start End Type Open Ref GrpRef Name
    000003fa90215000 000003fa90627000 dlib 1 1 0 /usr/lib/libpthread.so.18.0
/usr/lib/libc.so.73.1
/usr/lib/libc.so.73.1:
/usr/local/lib/libharfbuzz.so.4.2
    Start End Type Open Ref GrpRef Name
    00001d6562ec0000 00001d6563327000 dlib 1 0 0 /usr/local/lib/libharfbuzz.so.4.2
    00001d6563d33000 00001d656422e000 rlib 0 1 0 /usr/local/lib/libglib-2.0.so.3800.0
    00001d655f4af000 00001d655f8ef000 rlib 0 2 0 /usr/local/lib/libpcre.so.3.0
    00001d6561e55000 00001d656225f000 rlib 0 2 0 /usr/local/lib/libintl.so.6.0
    00001d65659f5000 00001d6565ef2000 rlib 0 3 0 /usr/local/lib/libiconv.so.6.0
    00001d6558fb5000 00001d6559447000 rlib 0 1 0 /usr/X11R6/lib/libfreetype.so.22.0
    00001d655c8fe000 00001d655cd13000 rlib 0 1 0 /usr/lib/libz.so.5.0
    00001d6560a18000 00001d6560e41000 rlib 0 1 0 /usr/local/lib/libgraphite2.so.0.0
    00001d6567c39000 00001d6568148000 rlib 0 2 0 /usr/lib/libstdc++.so.57.0
    00001d65598e4000 00001d6559d0c000 rlib 0 3 0 /usr/lib/libm.so.9.0
    00001d65676f7000 00001d6567b09000 rlib 0 3 0 /usr/lib/libpthread.so.18.0
/usr/local/lib/libgraphite2.so.0.0
    Start End Type Open Ref GrpRef Name
    0000034dcb2ec000 0000034dcb715000 dlib 1 0 0 /usr/local/lib/libgraphite2.so.0.0
    0000034dd1fb8000 0000034dd24c7000 rlib 0 1 0 /usr/lib/libstdc++.so.57.0
    0000034dcc712000 0000034dccb3a000 rlib 0 2 0 /usr/lib/libm.so.9.0
/usr/local/lib/libffi.so.0.0
    Start End Type Open Ref GrpRef Name
    00000b17f87ba000 00000b17f8bc1000 dlib 1 0 0 /usr/local/lib/libffi.so.0.0
/usr/X11R6/lib/libpixman-1.so.32.4
    Start End Type Open Ref GrpRef Name
    00001b0e55d04000 00001b0e561b0000 dlib 1 0 0 /usr/X11R6/lib/libpixman-1.so.32.4
    00001b0e4e012000 00001b0e4e414000 rlib 0 1 0 /usr/X11R6/lib/libpthread-stubs.so.2.0
    00001b0e56782000 00001b0e56baa000 rlib 0 1 0 /usr/lib/libm.so.9.0
/usr/X11R6/lib/libxcb-shm.so.1.0
    Start End Type Open Ref GrpRef Name
    00000a64f835f000 00000a64f8761000 dlib 1 0 0 /usr/X11R6/lib/libxcb-shm.so.1.0
    00000a64f8c23000 00000a64f9041000 rlib 0 1 0 /usr/X11R6/lib/libxcb.so.3.0
    00000a6502cae000 00000a65030b0000 rlib 0 1 0 /usr/X11R6/lib/libpthread-stubs.so.2.0
    00000a65028ab000 00000a6502cae000 rlib 0 1 0 /usr/X11R6/lib/libXau.so.10.0
    00000a64fb081000 00000a64fb486000 rlib 0 1 0 /usr/X11R6/lib/libXdmcp.so.11.0
/usr/X11R6/lib/libxcb-render.so.1.0
    Start End Type Open Ref GrpRef Name
    000003868e3d3000 000003868e7dc000 dlib 1 0 0 /usr/X11R6/lib/libxcb-render.so.1.0
    0000038690dfc000 000003869121a000 rlib 0 1 0 /usr/X11R6/lib/libxcb.so.3.0
    000003869426f000 0000038694671000 rlib 0 1 0 /usr/X11R6/lib/libpthread-stubs.so.2.0
    0000038695234000 0000038695637000 rlib 0 1 0 /usr/X11R6/lib/libXau.so.10.0
    00000386976a3000 0000038697aa8000 rlib 0 1 0 /usr/X11R6/lib/libXdmcp.so.11.0
/usr/X11R6/lib/libpthread-stubs.so.2.0
    Start End Type Open Ref GrpRef Name
    0000095a10de4000 0000095a111e6000 dlib 1 0 0 /usr/X11R6/lib/libpthread-stubs.so.2.0
/usr/X11R6/lib/libxcb.so.3.0
    Start End Type Open Ref GrpRef Name
    00000cc41417e000 00000cc41459c000 dlib 1 0 0 /usr/X11R6/lib/libxcb.so.3.0
    00000cc412aa8000 00000cc412eaa000 rlib 0 1 0 /usr/X11R6/lib/libpthread-stubs.so.2.0
    00000cc406900000 00000cc406d03000 rlib 0 1 0 /usr/X11R6/lib/libXau.so.10.0
    00000cc4130a2000 00000cc4134a7000 rlib 0 1 0 /usr/X11R6/lib/libXdmcp.so.11.0
/usr/local/lib/libcroco-0.6.so.4.0
    Start End Type Open Ref GrpRef Name
    000016510c699000 000016510cad3000 dlib 1 0 0 /usr/local/lib/libcroco-0.6.so.4.0
    00001651115fb000 0000165111af6000 rlib 0 1 0 /usr/local/lib/libglib-2.0.so.3800.0
    0000165113097000 00001651134d7000 rlib 0 2 0 /usr/local/lib/libpcre.so.3.0
    00001651072b2000 00001651076bc000 rlib 0 2 0 /usr/local/lib/libintl.so.6.0
    000016511353e000 0000165113a97000 rlib 0 1 0 /usr/local/lib/libxml2.so.15.1
    000016510e2e3000 000016510e6f8000 rlib 0 2 0 /usr/lib/libz.so.5.0
    000016510d4d6000 000016510d9d3000 rlib 0 4 0 /usr/local/lib/libiconv.so.6.0
    0000165108ba9000 0000165108fd1000 rlib 0 2 0 /usr/lib/libm.so.9.0
    000016510f611000 000016510fa23000 rlib 0 3 0 /usr/lib/libpthread.so.18.0
/usr/local/lib/libpcre.so.3.0
    Start End Type Open Ref GrpRef Name
    000018c144858000 000018c144c98000 dlib 1 0 0 /usr/local/lib/libpcre.so.3.0
/usr/local/lib/libintl.so.6.0
    Start End Type Open Ref GrpRef Name
    0000153ed3eaa000 0000153ed42b4000 dlib 1 0 0 /usr/local/lib/libintl.so.6.0
    0000153ed72ab000 0000153ed77a8000 rlib 0 1 0 /usr/local/lib/libiconv.so.6.0
/usr/local/lib/libxml2.so.15.1
    Start End Type Open Ref GrpRef Name
    00000f4c539ff000 00000f4c53f58000 dlib 1 0 0 /usr/local/lib/libxml2.so.15.1
    00000f4c5cd79000 00000f4c5d18e000 rlib 0 1 0 /usr/lib/libz.so.5.0
    00000f4c55bc7000 00000f4c560c4000 rlib 0 1 0 /usr/local/lib/libiconv.so.6.0
    00000f4c51e0c000 00000f4c52234000 rlib 0 1 0 /usr/lib/libm.so.9.0
/usr/X11R6/lib/libXau.so.10.0
    Start End Type Open Ref GrpRef Name
    000010ed9aa18000 000010ed9ae1b000 dlib 1 0 0 /usr/X11R6/lib/libXau.so.10.0
/usr/X11R6/lib/libXdmcp.so.11.0
    Start End Type Open Ref GrpRef Name
    00001b6469253000 00001b6469658000 dlib 1 0 0 /usr/X11R6/lib/libXdmcp.so.11.0
/usr/local/lib/libidn.so.17.0
    Start End Type Open Ref GrpRef Name
    000009ceb5ac4000 000009ceb5ef7000 dlib 1 0 0 /usr/local/lib/libidn.so.17.0
    000009ceb7e5a000 000009ceb8264000 rlib 0 1 0 /usr/local/lib/libintl.so.6.0
    000009ceaf2b5000 000009ceaf7b2000 rlib 0 2 0 /usr/local/lib/libiconv.so.6.0
/usr/lib/libstdc++.so.57.0
    Start End Type Open Ref GrpRef Name
    00001aaa80252000 00001aaa80761000 dlib 1 0 0 /usr/lib/libstdc++.so.57.0
    00001aaa79036000 00001aaa7945e000 rlib 0 1 0 /usr/lib/libm.so.9.0
/usr/libexec/ld.so
    Start End Type Open Ref GrpRef Name
    00000924d0294000 00000924d06a5000 dlib 1 0 0 /usr/libexec/ld.so
Vincent Sanders

~0000496

Vincent Sanders (administrator)

the previous dump is compiling with

#!/bin/sh
#
#link netsurf on openbsd

cc -o nsgtk build-OpenBSD-gtk/build-OpenBSD-gtk_menu_cursor.o build-OpenBSD-gtk/content_content.o build-OpenBSD-gtk/content_content_factory.o build-OpenBSD-gtk/content_dirlist.o build-OpenBSD-gtk/content_fetch.o build-OpenBSD-gtk/content_fetchers_about.o build-OpenBSD-gtk/content_fetchers_curl.o build-OpenBSD-gtk/content_fetchers_data.o build-OpenBSD-gtk/content_fetchers_file.o build-OpenBSD-gtk/content_fetchers_resource.o build-OpenBSD-gtk/content_fs_backing_store.o build-OpenBSD-gtk/content_hlcache.o build-OpenBSD-gtk/content_llcache.o build-OpenBSD-gtk/content_mimesniff.o build-OpenBSD-gtk/content_no_backing_store.o build-OpenBSD-gtk/content_urldb.o build-OpenBSD-gtk/css_css.o build-OpenBSD-gtk/css_dump.o build-OpenBSD-gtk/css_internal.o build-OpenBSD-gtk/css_select.o build-OpenBSD-gtk/css_utils.o build-OpenBSD-gtk/desktop_browser.o build-OpenBSD-gtk/desktop_browser_history.o build-OpenBSD-gtk/desktop_cookie_manager.o build-OpenBSD-gtk/desktop_download.o build-OpenBSD-gtk/desktop_frames.o build-OpenBSD-gtk/desktop_global_history.o build-OpenBSD-gtk/desktop_gui_factory.o build-OpenBSD-gtk/desktop_hotlist.o build-OpenBSD-gtk/desktop_knockout.o build-OpenBSD-gtk/desktop_mouse.o build-OpenBSD-gtk/desktop_netsurf.o build-OpenBSD-gtk/desktop_plot_style.o build-OpenBSD-gtk/desktop_print.o build-OpenBSD-gtk/desktop_save_complete.o build-OpenBSD-gtk/desktop_save_pdf_font_haru.o build-OpenBSD-gtk/desktop_save_pdf_pdf_plotters.o build-OpenBSD-gtk/desktop_save_text.o build-OpenBSD-gtk/desktop_scrollbar.o build-OpenBSD-gtk/desktop_search.o build-OpenBSD-gtk/desktop_searchweb.o build-OpenBSD-gtk/desktop_selection.o build-OpenBSD-gtk/desktop_sslcert_viewer.o build-OpenBSD-gtk/desktop_system_colour.o build-OpenBSD-gtk/desktop_textarea.o build-OpenBSD-gtk/desktop_textinput.o build-OpenBSD-gtk/desktop_thumbnail.o build-OpenBSD-gtk/desktop_tree.o build-OpenBSD-gtk/desktop_treeview.o build-OpenBSD-gtk/desktop_version.o build-OpenBSD-gtk/gtk_bitmap.o build-OpenBSD-gtk/gtk_compat.o build-OpenBSD-gtk/gtk_completion.o build-OpenBSD-gtk/gtk_cookies.o build-OpenBSD-gtk/gtk_dialogs_about.o build-OpenBSD-gtk/gtk_dialogs_preferences.o build-OpenBSD-gtk/gtk_download.o build-OpenBSD-gtk/gtk_fetch.o build-OpenBSD-gtk/gtk_font_pango.o build-OpenBSD-gtk/gtk_gdk.o build-OpenBSD-gtk/gtk_gettext.o build-OpenBSD-gtk/gtk_gui.o build-OpenBSD-gtk/gtk_history.o build-OpenBSD-gtk/gtk_hotlist.o build-OpenBSD-gtk/gtk_login.o build-OpenBSD-gtk/gtk_menu.o build-OpenBSD-gtk/gtk_plotters.o build-OpenBSD-gtk/gtk_print.o build-OpenBSD-gtk/gtk_scaffolding.o build-OpenBSD-gtk/gtk_schedule.o build-OpenBSD-gtk/gtk_search.o build-OpenBSD-gtk/gtk_selection.o build-OpenBSD-gtk/gtk_tabs.o build-OpenBSD-gtk/gtk_theme.o build-OpenBSD-gtk/gtk_throbber.o build-OpenBSD-gtk/gtk_thumbnail.o build-OpenBSD-gtk/gtk_toolbar.o build-OpenBSD-gtk/gtk_treeview.o build-OpenBSD-gtk/gtk_viewdata.o build-OpenBSD-gtk/gtk_viewsource.o build-OpenBSD-gtk/gtk_window.o build-OpenBSD-gtk/image_bmp.o build-OpenBSD-gtk/image_gif.o build-OpenBSD-gtk/image_ico.o build-OpenBSD-gtk/image_image.o build-OpenBSD-gtk/image_image_cache.o build-OpenBSD-gtk/image_jpeg.o build-OpenBSD-gtk/image_png.o build-OpenBSD-gtk/image_rsvg.o build-OpenBSD-gtk/image_svg.o build-OpenBSD-gtk/javascript_fetcher.o build-OpenBSD-gtk/javascript_none.o build-OpenBSD-gtk/render_box.o build-OpenBSD-gtk/render_box_construct.o build-OpenBSD-gtk/render_box_normalise.o build-OpenBSD-gtk/render_box_textarea.o build-OpenBSD-gtk/render_font.o build-OpenBSD-gtk/render_form.o build-OpenBSD-gtk/render_html.o build-OpenBSD-gtk/render_html_css.o build-OpenBSD-gtk/render_html_css_fetcher.o build-OpenBSD-gtk/render_html_forms.o build-OpenBSD-gtk/render_html_interaction.o build-OpenBSD-gtk/render_html_object.o build-OpenBSD-gtk/render_html_redraw.o build-OpenBSD-gtk/render_html_script.o build-OpenBSD-gtk/render_imagemap.o build-OpenBSD-gtk/render_layout.o build-OpenBSD-gtk/render_search.o build-OpenBSD-gtk/render_table.o build-OpenBSD-gtk/render_textplain.o build-OpenBSD-gtk/utils_base64.o build-OpenBSD-gtk/utils_bloom.o build-OpenBSD-gtk/utils_container.o build-OpenBSD-gtk/utils_corestrings.o build-OpenBSD-gtk/utils_file.o build-OpenBSD-gtk/utils_filename.o build-OpenBSD-gtk/utils_filepath.o build-OpenBSD-gtk/utils_hashtable.o build-OpenBSD-gtk/utils_http_challenge.o build-OpenBSD-gtk/utils_http_content-disposition.o build-OpenBSD-gtk/utils_http_content-type.o build-OpenBSD-gtk/utils_http_generics.o build-OpenBSD-gtk/utils_http_parameter.o build-OpenBSD-gtk/utils_http_primitives.o build-OpenBSD-gtk/utils_http_www-authenticate.o build-OpenBSD-gtk/utils_idna.o build-OpenBSD-gtk/utils_libdom.o build-OpenBSD-gtk/utils_locale.o build-OpenBSD-gtk/utils_log.o build-OpenBSD-gtk/utils_messages.o build-OpenBSD-gtk/utils_nsoption.o build-OpenBSD-gtk/utils_nsurl.o build-OpenBSD-gtk/utils_punycode.o build-OpenBSD-gtk/utils_talloc.o build-OpenBSD-gtk/utils_url.o build-OpenBSD-gtk/utils_useragent.o build-OpenBSD-gtk/utils_utf8.o build-OpenBSD-gtk/utils_utf8proc.o build-OpenBSD-gtk/utils_utils.o -ljpeg -liconv -lz -L/usr/local/lib -lpng -L/home/vince/dev-netsurf/workspace/inst-OpenBSD/lib -lnsbmp -L/home/vince/dev-netsurf/workspace/inst-OpenBSD/lib -lnsgif -L/usr/local/lib -Wl,-rpath-link,/usr/X11R6/lib -lrsvg-2 -lm -lgio-2.0 -lgdk_pixbuf-2.0 -lgobject-2.0 -lglib-2.0 -lcairo -L/home/vince/dev-netsurf/workspace/inst-OpenBSD/lib -lsvgtiny -ldom -lexpat -lhubbub -lparserutils -L/home/vince/dev-netsurf/workspace/inst-OpenBSD/lib -lcss -lparserutils -lwapcaplet -L/home/vince/dev-netsurf/workspace/inst-OpenBSD/lib -ldom -lexpat -lhubbub -lparserutils -L/home/vince/dev-netsurf/workspace/inst-OpenBSD/lib -lhubbub -lparserutils -L/usr/lib -lssl -lcrypto -L/usr/local/lib -lcurl -L/usr/local/lib -L/usr/X11R6/lib -Wl,-rpath-link,/usr/X11R6/lib -lgtk-x11-2.0 -lgdk-x11-2.0 -lpangocairo-1.0 -lXrender -lXinerama -lXi -lXrandr -lXcursor -lXcomposite -lXdamage -lXfixes -lX11 -lXext -latk-1.0 -lcairo -lgdk_pixbuf-2.0 -lgio-2.0 -lpangoft2-1.0 -lpango-1.0 -lm -lgobject-2.0 -lglib-2.0 -lfreetype -lz -lfontconfig -L/usr/local/lib -pthread -lgthread-2.0 -lglib-2.0 -L/usr/local/lib -Wl,-E -pthread -lgmodule-2.0 -lglib-2.0 -lm
Vincent Sanders

~0000497

Vincent Sanders (administrator)

I really have no further ideas unless the openbsd community at large can come up with a better solution.
james palmer

~0002297

james palmer (reporter)

this is also happening on alpine linux edge on netsurf 3.10
saper

~0002374

saper (reporter)

With FreeBSD 14.0-CURRENT #1 main-eb45bc68291 running under pl_PL.UTF-8 locale it is even worse: the preferences window does not appear at all.

 (1.603423) desktop/browser_history.c:476 nserror b
rowser_window_history_update(struct browser_window
 *, struct hlcache_handle *): Updated scroll offse
ts to 0 by 0
(9.232225) frontends/gtk/preferences.c:982 GtkWidget *nsgtk_preferences(struct browser_window *, GtkWindow *): Preferences UI builder init failed
(10.301929) content/fs_backing_store.c:753 nserror write_entries(struct store_state *): Wrote out 88 entries

It works if started via env LANG=C netsuft-gtk

The session is started on X.org server running dwm window manager, not a "real" desktop environment.

gtk-demo and gtk3-demo seem to work fine here.
saper

~0002375

saper (reporter)

Looks like strange preferences window issue has been fixed in the FreeBSD port:

https://bugs.freebsd.org/bugzilla/show_bug.cgi?id=254702

Probably it would be good to have a look at the solution there and maybe it can be solved in the Netsurf itself.

The fix was incomplete though and I have fixed it for myself:

https://bugs.freebsd.org/bugzilla/show_bug.cgi?id=263498
+Notes

-Issue History
Date Modified Username Field Change
2013-12-11 11:10 Michael Drake New Issue
2013-12-11 11:10 Michael Drake Note Added: 0000005
2013-12-11 11:52 Rob Kendrick Category NetSurf => General
2013-12-11 11:52 Rob Kendrick Description Updated View Revisions
2013-12-11 16:06 Vincent Sanders Status new => confirmed
2013-12-11 16:06 Vincent Sanders Category General => GTK-specific
2013-12-11 16:06 Vincent Sanders Product Version => 3.0
2013-12-11 16:06 Vincent Sanders Description Updated View Revisions
2013-12-11 16:06 Vincent Sanders Steps to Reproduce Updated View Revisions
2013-12-11 16:22 Vincent Sanders File Added: preferences.jpg
2014-09-08 14:40 sabotage_linux Note Added: 0000484
2014-09-08 14:48 Vincent Sanders Note Added: 0000485
2014-09-08 14:49 Anthony J. Bentley Note Added: 0000486
2014-09-17 04:55 Anthony J. Bentley Note Added: 0000491
2014-09-19 13:05 Vincent Sanders Note Added: 0000494
2014-09-19 13:09 Vincent Sanders Note Added: 0000496
2014-09-19 13:10 Vincent Sanders Note Added: 0000497
2020-10-26 12:06 james palmer File Added: 2020-10-26-120519_1600x900_scrot.png
2020-10-26 12:06 james palmer Note Added: 0002297
2022-04-23 19:56 saper Note Added: 0002374
2022-04-23 21:13 saper Note Added: 0002375
+Issue History
