| View Issue Details [ Jump to Notes ] | [ Issue History ] [ Print ] | ||||||||||||
| ID | Project | Category | View Status | Date Submitted | Last Update | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 0002449 | NetSurf | Amiga-specific | public | 2016-04-27 23:32 | 2021-02-18 15:21 | ||||||||
| Reporter | Chris Young | ||||||||||||
| Assigned To | Chris Young | ||||||||||||
| Severity | minor | Reproducibility | always | ||||||||||
| Status | confirmed | Resolution | open | ||||||||||
| Platform | Amiga | OS | AmigaOS | OS Version | 4.1 | ||||||||
| Product Version | 3.6 | ||||||||||||
| Target Version | Fixed in Version | ||||||||||||
| Summary | 0002449: IFF DR2D export creates invalid file | ||||||||||||
| Description | IFF DR2D export creates invalid file from SVG created with http://fooplot.com/ | ||||||||||||
| Tags | No tags attached. | ||||||||||||
| Fixed in CI build # | |||||||||||||
| Reported in CI build # | |||||||||||||
| URL of problem page | http://fooplot.com/ | ||||||||||||
| Attached Files |
| ||||||||||||
 Relationships |
|
 Relationships |
| Notes |
|
Chris Young (developer) 2016-04-27 23:34 |

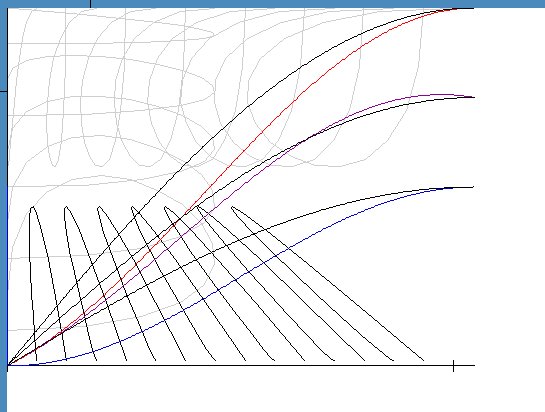

Appears that the grid lines are being treated errorneously as bezier curves. |
|
Chris Young (developer) 2016-05-02 14:51 |

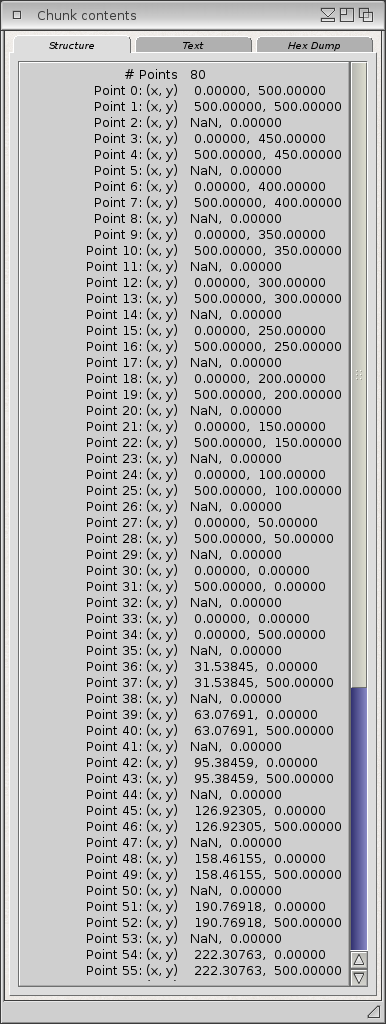

When I load this file into IFFMaster I can see the gridlines OPLY chunk (screenshot attached). It is a sequence of INDICATOR/0x00000002 (IND_MOVETO) followed by the co-ordinates, eg. 0.0,500.0,500.0,500.0. There's not anything obviously wrong with the contents of that chunk, and neither can I see any bezier curves at all in the entire file (the graph is made up of very short straight lines). The file is however failing to open in anything other than MetaView due to IFF parsing errors. |
|
Chris Young (developer) 2021-02-18 15:21 |
After a bugfix in my datatype, this file displays ok in Multiview (except the gridlines don't display at all). In MetaView I see weird bezier curves that shouldn't be there (and an error), and in ProVector the grid displays but the lines do not (however I'm not confident the display is working correctly here, it's an old program). |
| Notes |
| Issue History |
|||
| Date Modified | Username | Field | Change |
|---|---|---|---|
| 2016-04-27 23:32 | Chris Young | New Issue | |
| 2016-04-27 23:32 | Chris Young | Status | new => assigned |
| 2016-04-27 23:32 | Chris Young | Assigned To | => Chris Young |
| 2016-04-27 23:32 | Chris Young | File Added: SpglGrfC.svg | |
| 2016-04-27 23:32 | Chris Young | File Added: SpglGrfC.iff | |
| 2016-04-27 23:33 | Chris Young | File Added: metaview.jpg | |
| 2016-04-27 23:34 | Chris Young | Note Added: 0001373 | |
| 2016-04-27 23:34 | Chris Young | Status | assigned => confirmed |
| 2016-05-02 14:51 | Chris Young | Note Added: 0001375 | |
| 2016-05-02 14:51 | Chris Young | File Added: oply_chunk.png | |
| 2021-02-18 15:21 | Chris Young | Note Added: 0002321 | |
